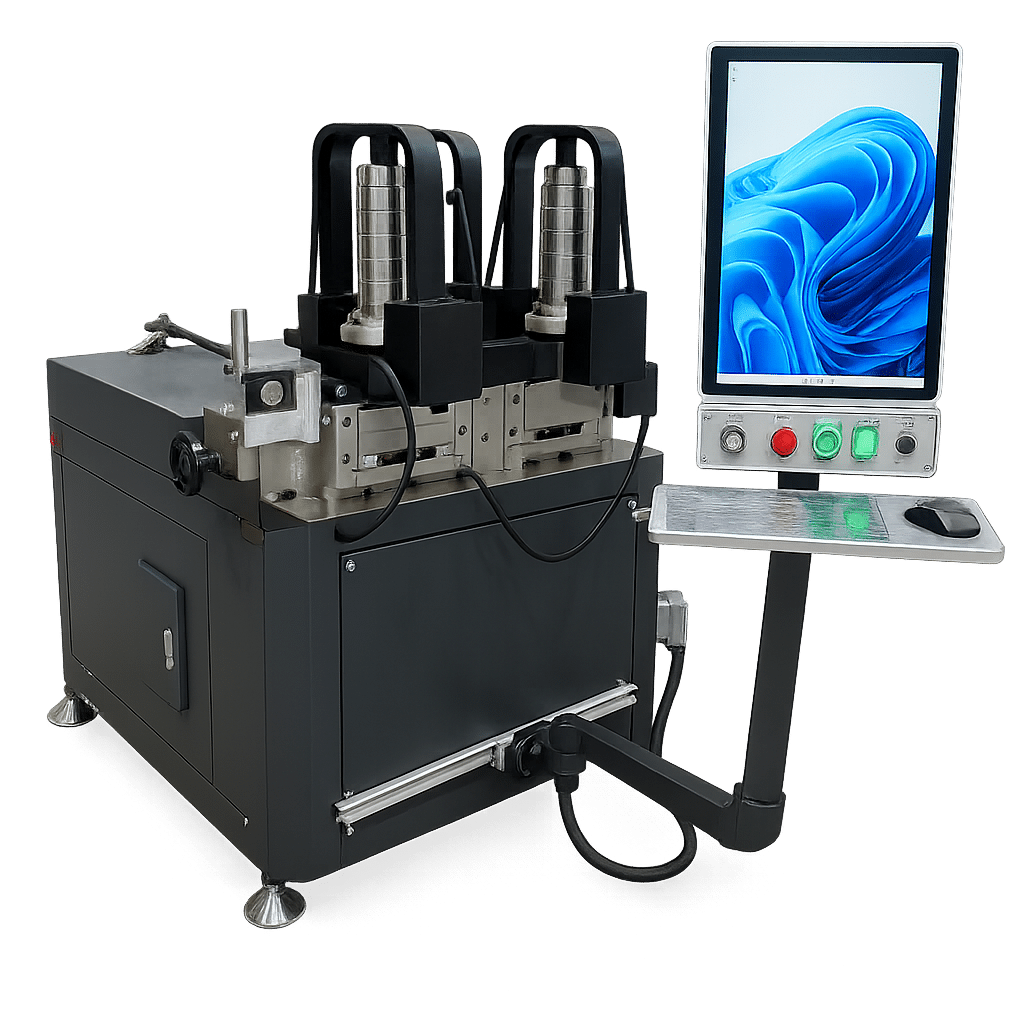

Precision and Power in Profile Bending: A Comprehensive Look at the MBM4000-4S CNC Aluminum Profile Bending Machine
Introduction
In the evolving world of industrial manufacturing, precision, efficiency, and adaptability are paramount. Among the many innovations that have reshaped metalworking, CNC aluminum profile bending machines stand out as indispensable tools for industries ranging from aerospace to architecture. One such machine—the MBM4000-4S CNC Aluminum Profile Bending Machine (4 Servo Model)—embodies the cutting edge of bending technology, offering unmatched control, accuracy, and versatility.
Technical Specifications at a Glance
| Feature | Specification |
|---|---|
| Voltage | 380V |
| Power Consumption | 8KW |
| Roller Speed | 1～15 r/min |
| Max Roller Mold Diameter (with anti-tilt) | 240mm |
| Spindle Diameter | 50mm |
| Spindle Anti-Tilt Device | Standard configuration |
| Fixed Wheel Center Distance | 280～600mm |
| Y-axis Thrust | Rated pressure 15T |
| Y-axis Repeat Positioning Accuracy | ≤0.01mm |
| Max Torque on X-axis | Rated torque 4000 N·m |
| Min Bending Radius | 100mm |
| Max Profile Width | 120mm |
| Max Profile Axial Height | 200mm |
| External Dimensions | 1500×1200×1400mm |
| Weight | 900kg |
| Servo Motors | 4 units × 2KW |
| Hydraulic Station Motor Power | All servo |
| Hydraulic Proportional Valve | All servo |
| Variable Displacement Piston Pump | All servo |
| Control System | GOOGOLTECH |
| Display Screen | 21.5-inch vertical |
| Servo Motor Brand | Inovance |
| Planetary Gearbox Brand | KOFON |
| Number of Reducers | 5 units |
| Circuit Breaker Brand | Schneider |
| Proximity Switch Brand | Schneider |
| Photoelectric Sensor Brand | Germany SICK |
| Encoder Brand | TEP |
| Grating Ruler | SINO |
Advanced Control and Precision Engineering
At the heart of the MBM4000-4S lies its GOOGOLTECH control system, paired with a 21.5-inch vertical display, offering intuitive navigation and real-time feedback. The machine’s four high-performance servo motors (each rated at 2KW) ensure precise control over the bending process, allowing for smooth, consistent operations even with complex profiles.
Servo-driven bending offers a significant advantage over traditional hydraulic systems: greater accuracy, repeatability, and responsiveness. With a Y-axis repeat positioning accuracy of ≤0.01mm, the MBM4000-4S guarantees that each bend meets exacting standards, minimizing waste and maximizing productivity.
Versatility in Profile Handling
The MBM4000-4S is engineered to accommodate a wide range of aluminum profiles. It supports:
This flexibility makes it ideal for applications requiring tight curves or large structural elements. The fixed wheel center distance of 280–600mm further enhances its adaptability to different profile geometries.
3D and 2D File Compatibility
One of the standout features of the MBM4000-4S is its ability to directly operate using 3D files such as STP and IGS, as well as 2D DXF files. This capability streamlines the workflow from design to production, eliminating the need for intermediate conversions and reducing the risk of errors.
By supporting direct 3D operation, the machine allows engineers and designers to visualize and execute complex bending paths with confidence. This integration with CAD environments ensures seamless communication between design and manufacturing teams.
Robust Mechanical Design
The machine’s mechanical components are built for durability and precision:
The use of premium brands like Schneider (for circuit breakers and proximity switches), Germany’s SICK (photoelectric sensors), TEP (encoders), and SINO (grating rulers) reflects the machine’s commitment to quality and reliability.
Hydraulic System Excellence
Unlike conventional machines, the MBM4000-4S features an all-servo hydraulic system, including:
This configuration ensures precise pressure control, energy efficiency, and low maintenance, making the machine suitable for continuous, high-volume production environments.
Conclusion: A Benchmark in Aluminum Profile Bending
The MBM4000-4S CNC Aluminum Profile Bending Machine is more than just a piece of equipment—it’s a precision-engineered solution for modern manufacturing challenges. With its servo-driven architecture, advanced control system, and compatibility with both 2D and 3D design files, it empowers manufacturers to achieve unparalleled accuracy, efficiency, and flexibility.
Whether you’re producing architectural facades, automotive components, or aerospace structures, the MBM4000-4S delivers the performance and reliability needed to stay ahead in a competitive market.
