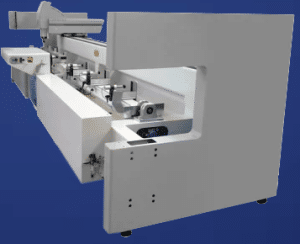

M4 4 CNC ALUMINUM PROFILE MACHINING CENTER BECAME THE CENTER OF ATTENTION

4 axis cnc aluminum profile machining center became the center of attention with its 4 axis controlled cnc profile machining center. October 20, 2019.The aluminum profile machining center has moving axles on precise linear slides with a brushless servo motor.The aluminum profile processing center comes to the fore with its faster and more practical function with pneumatically descending, lifting right and left rests.The spindle with aluminum profile machining center has the ability to change tools quickly, in addition, it has an 11 October tool magazine in a special protection area on the right side of the machine.Milling bit, clamping disc, etc.types of chuck it can accommodate.The holders offer service with the ability to be placed in the places indicated by the machine in the form of mm scale.

TECHNİCAL SPECİFİCATİONS;

-The machine is equipped with the CNC unit, which manages the operations, as indicated below;

– Linear and circular movements on the (X-Y-Z)axes.Effective functions performed with circular movements on the A axis,

-Programming system according to ISO codes,

-Geometric programming system,

-More functionality features with profile processing in two different regions(making it function separately in the left and right sections of the machine),

-2 profile binding without holding(pendular tracking)The ability to load and unload on the right side while the machine is watching the profile on the left side at the same time,

-Ability to change the team parameters. the 12-piece tool magazine prepares the next team for the tool change process by means of a servo motor,

-The electro-welded machine chassis is designed to provide maximum robustness, precision machining and functional use, and the main body of the machine is again processed completely and at one time on CNC machines and put into use to ensure maximum precision,

– 8 height-adjustable, articulated machine legs are placed along the bottom of the body and allow the machine to be accurately scaled,

– The machine body is designed to pour the material chips that may occur during processing into the middle part,

-The resulting sawdust is stored in portable drawers,

– The main pneumatic and electrical cabinets are mounted on the machine body. The housing also has sliding channels that contain foldable cable channels,

– There is a safety curtain with photocell and distance detection on the front side of the machine to ensure work and worker safety.
